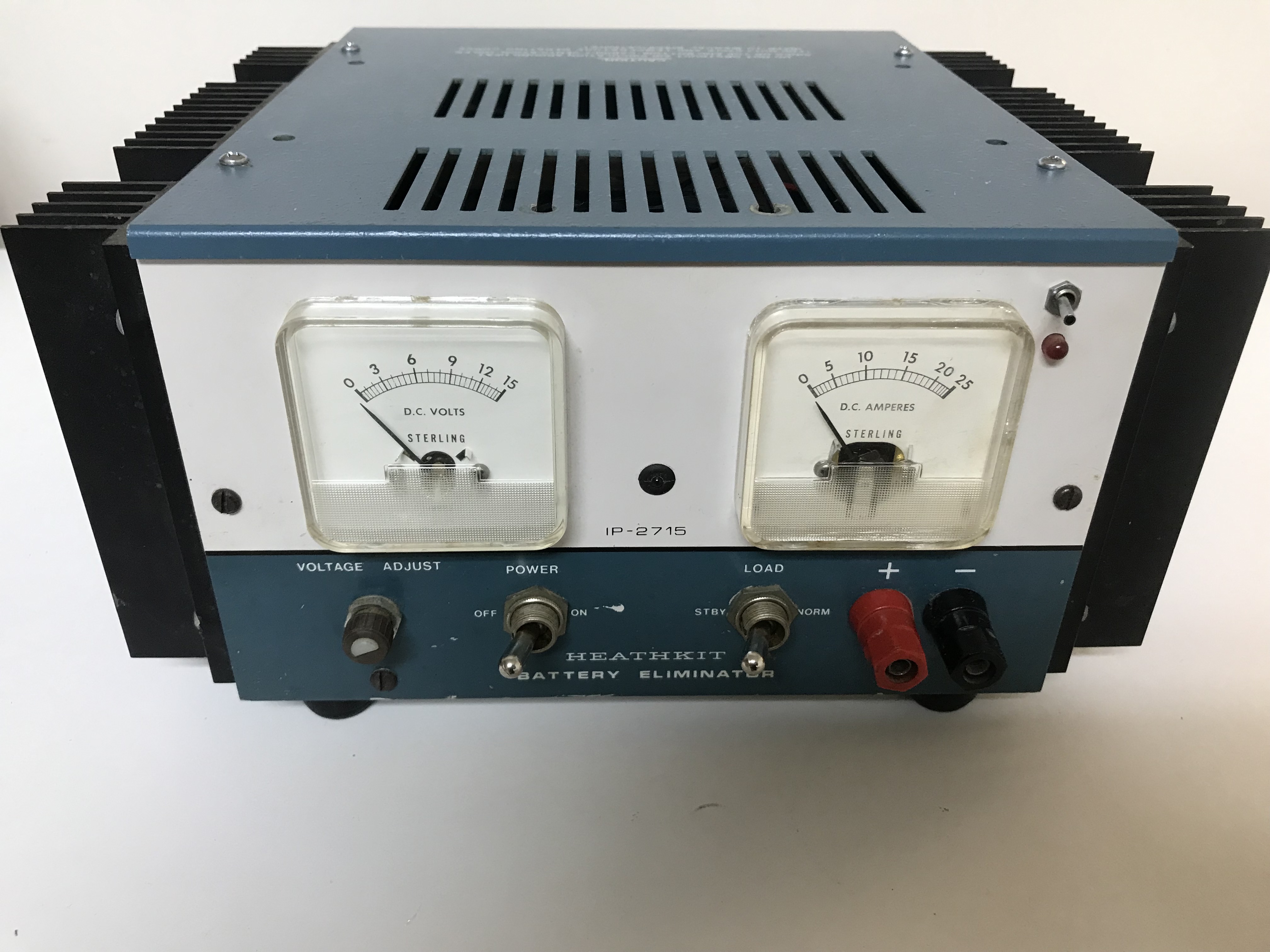

IP-27 front

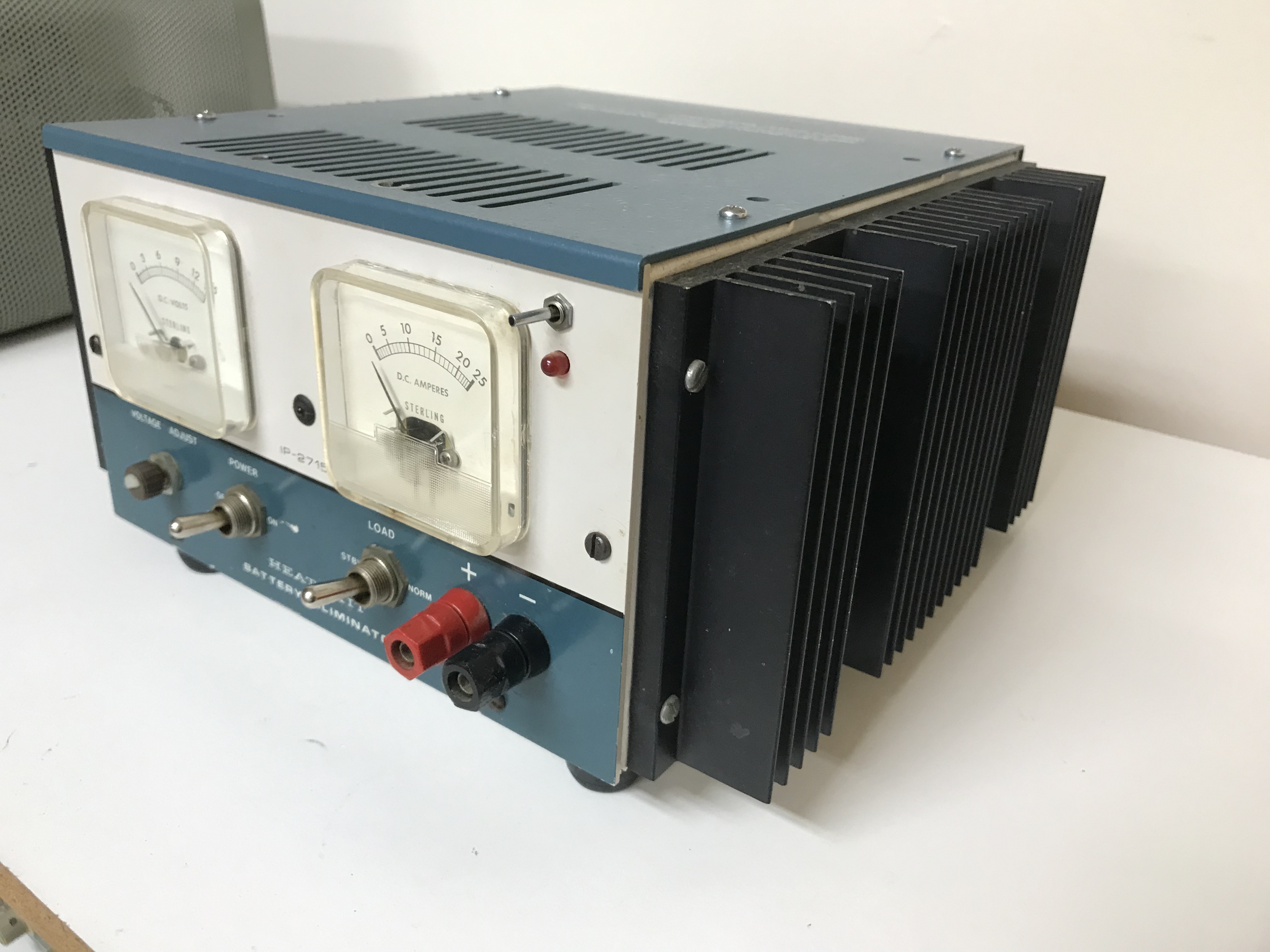

IP-2715 left

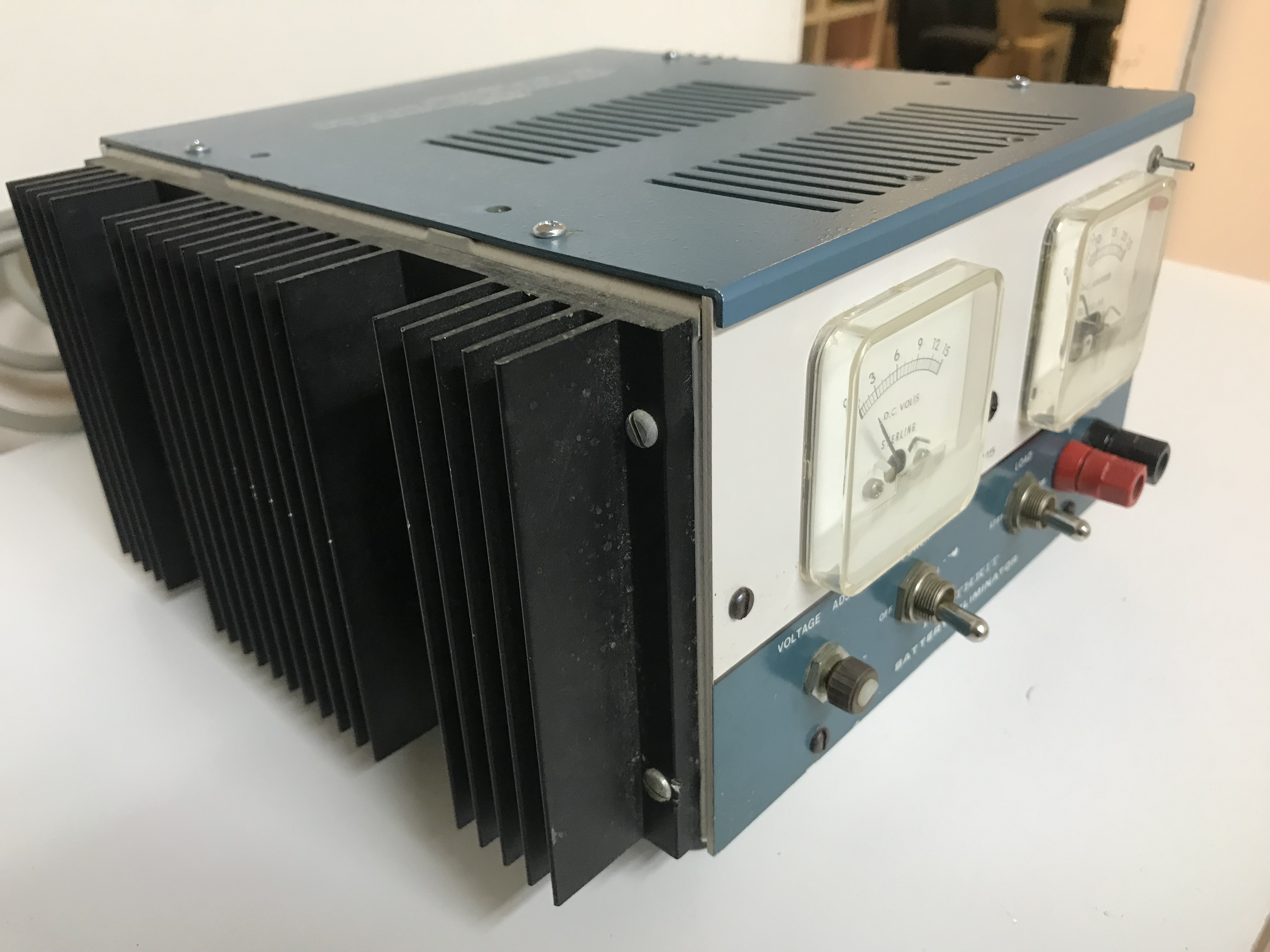

IP-2715 right

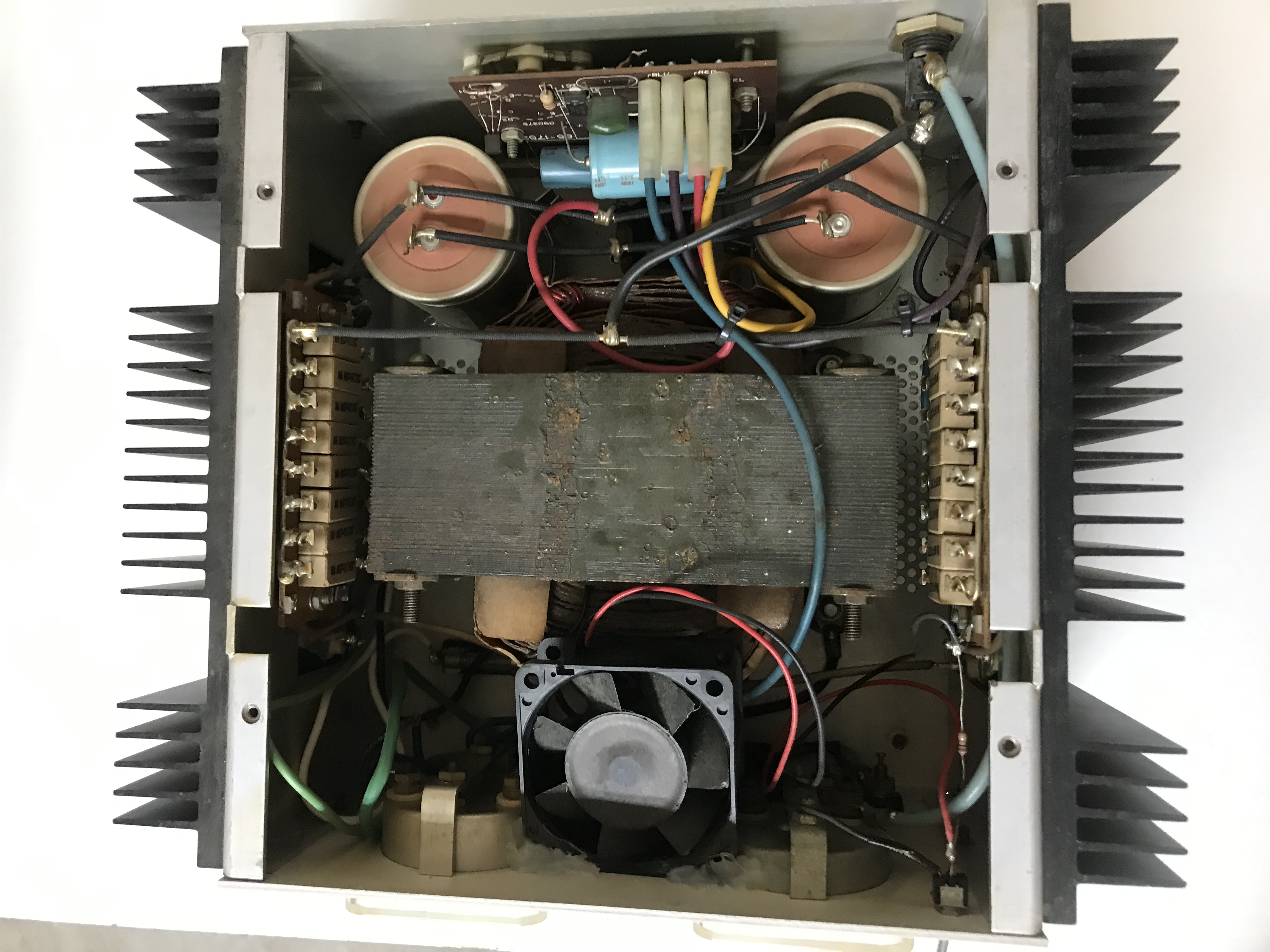

IP-2715 top inside

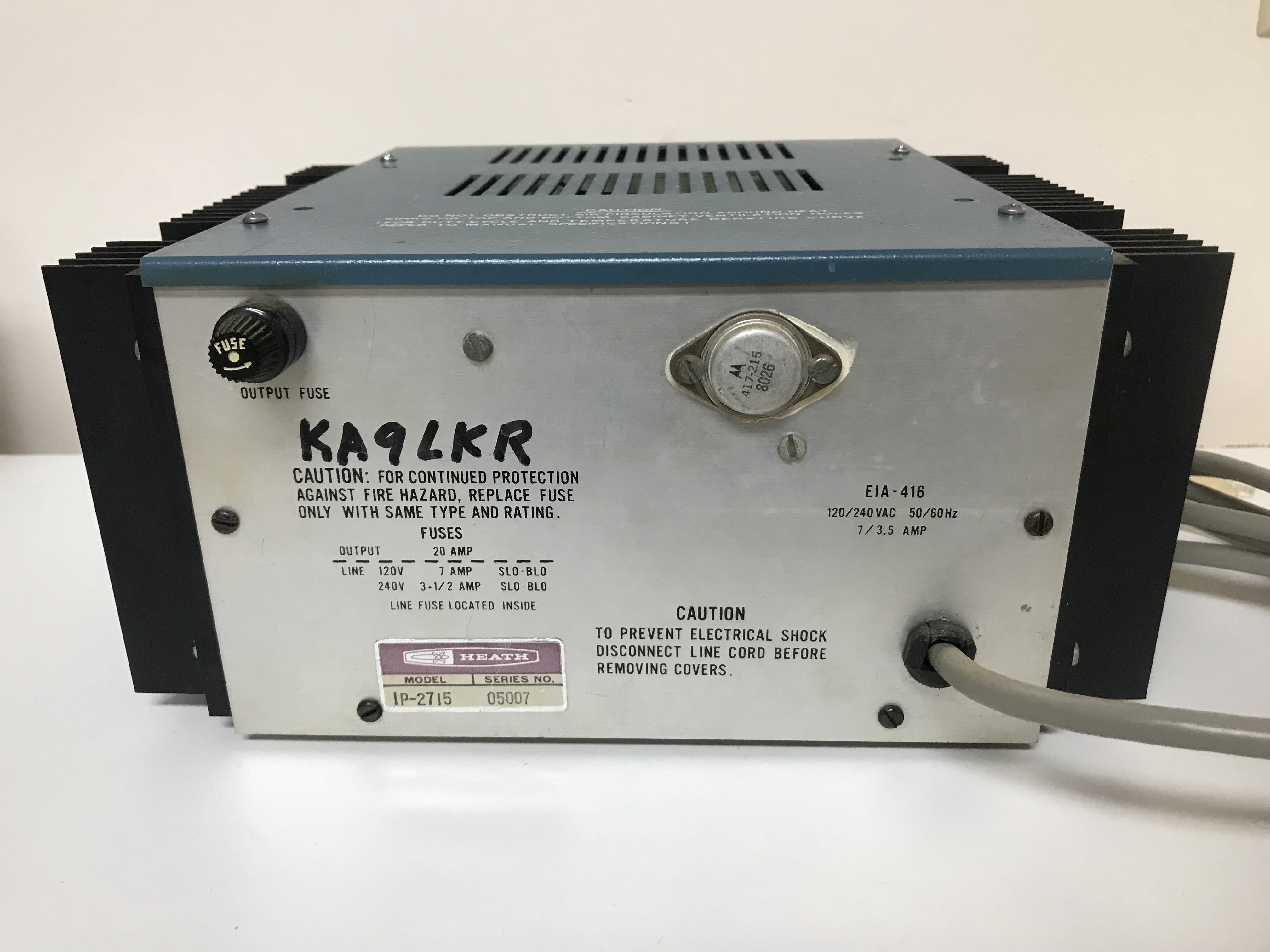

IP-2715 back

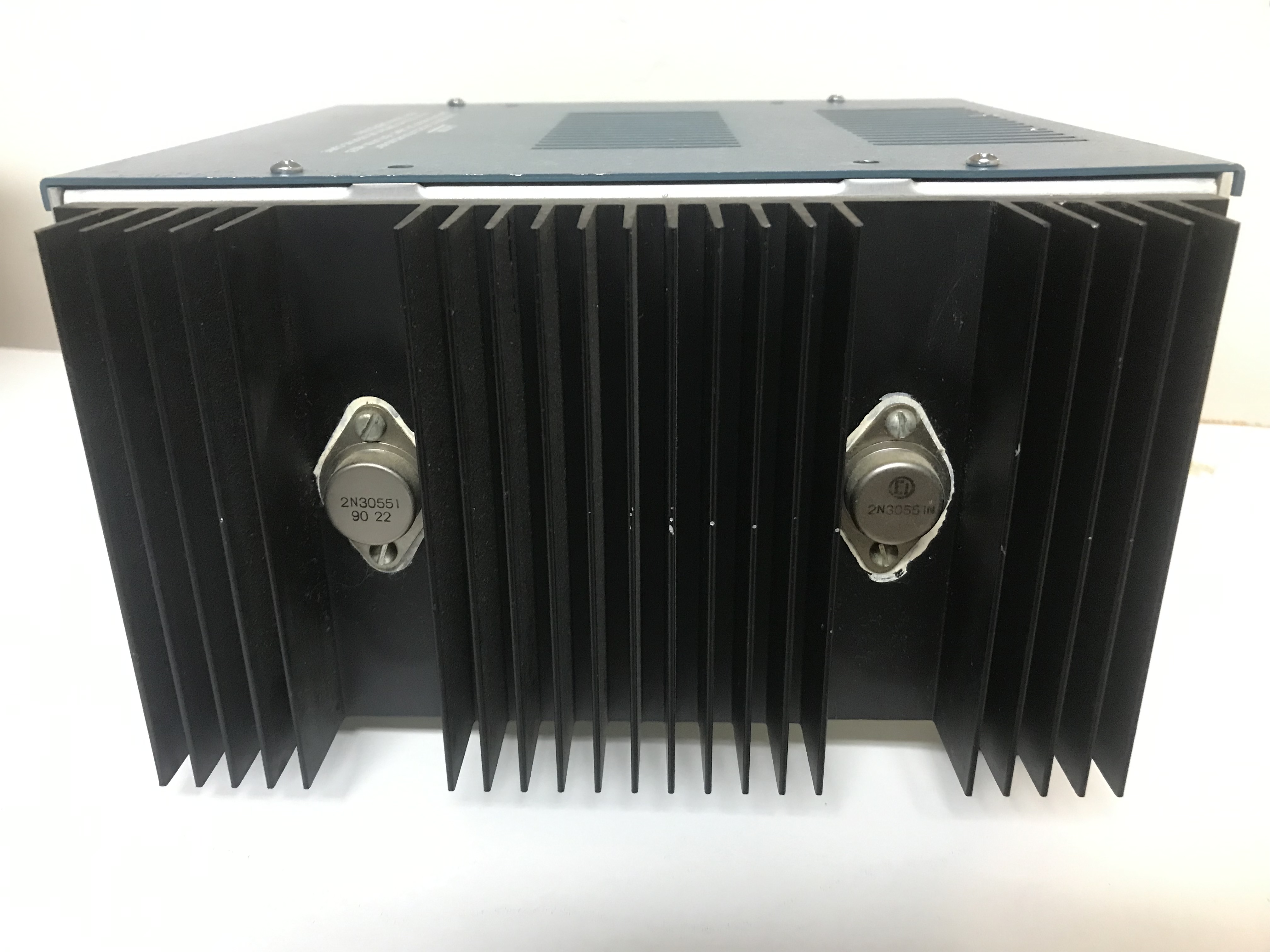

IP-2715 pass xsistors

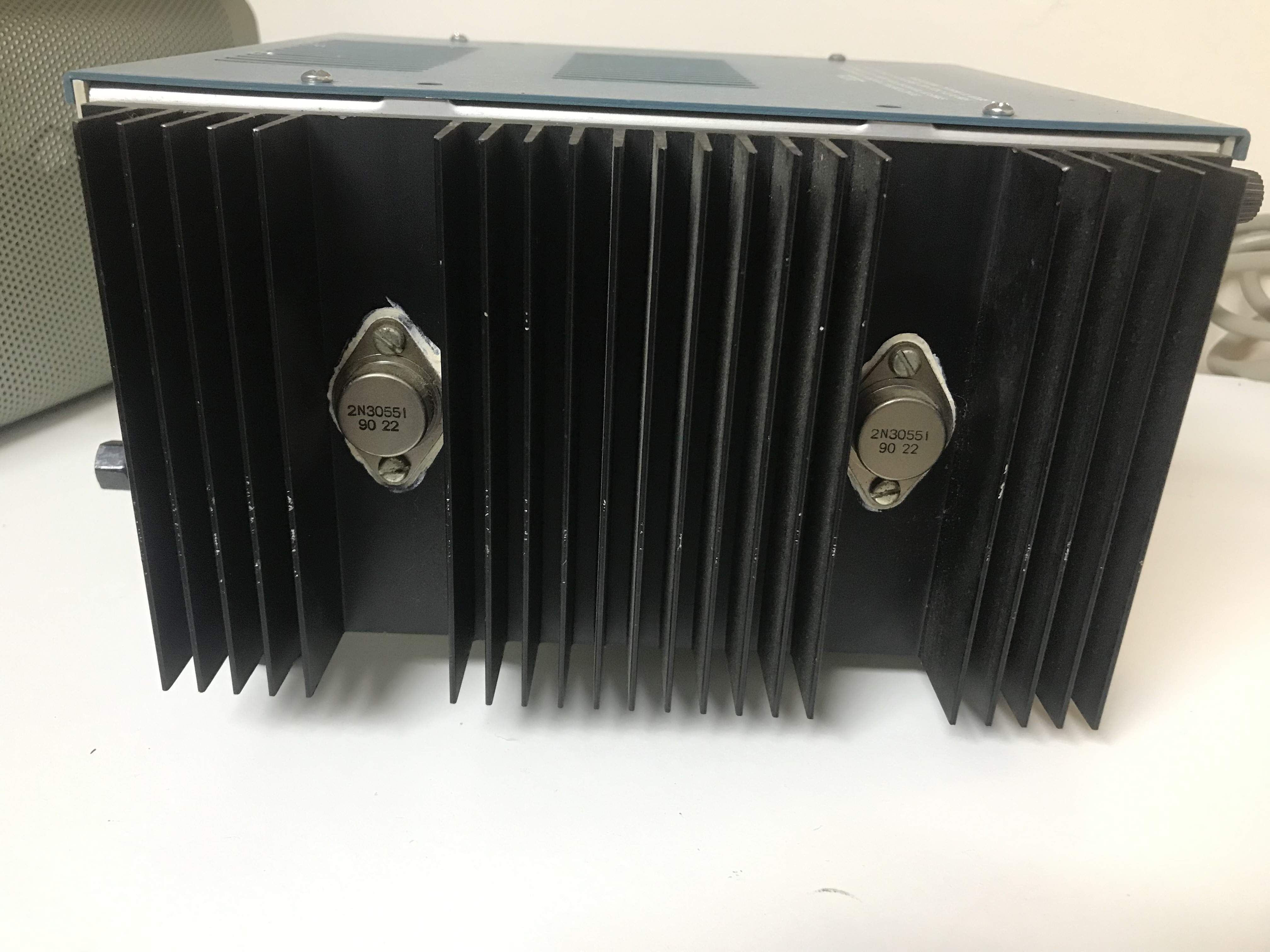

IP-2715 pass xsistors 2

IP-2715

Heathkit IP-2715 Battery Eliminator has separate voltage and current meters. Output voltage: variable from 9 - 15 VDC, Output current: 20 amps (intermittent), 12 amps continuous, Output ripple: less than 1% at full load, Regulation: less than 2% variation from no load to full load, Power requirement: 110 - 130VAC, 7 amperes or 220 - 240 VAC, 3.5 amperes, 50/60 Hz maximum There is an aftermarket cooling fan with on - off switch which has been installed. The unit has been tested and is working well.

Price: $225.00
